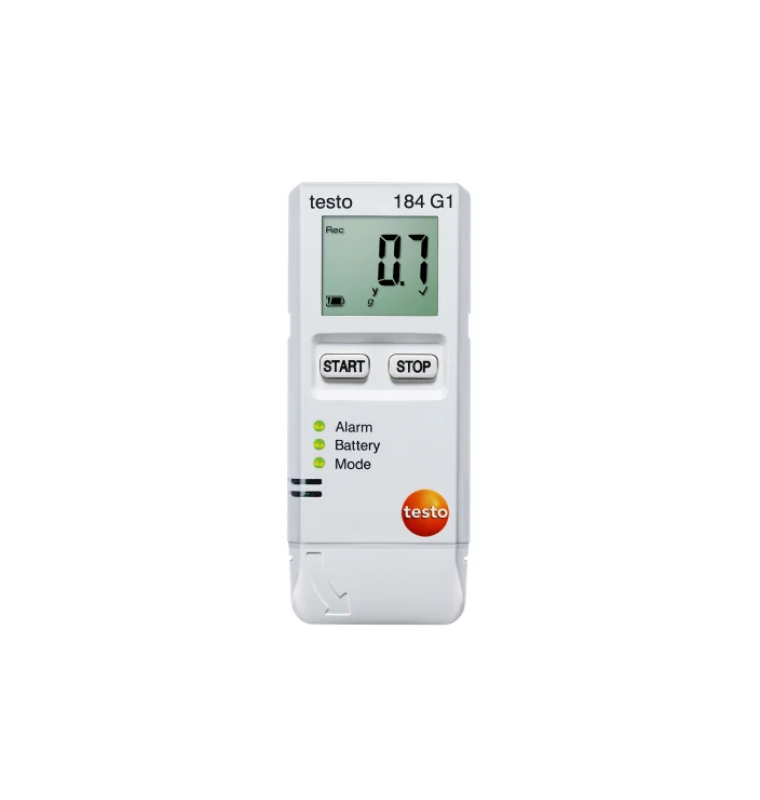

Data Logger testo 184 G1: Monitoring During Transport
The testo 184 G1 data logger is designed for monitoring the transport conditions of products sensitive to environmental changes (electronics, pharmaceuticals, food, artworks). A distinctive feature is the **unlimited measurement period**.
The device registers **impact, temperature, and humidity**. At the destination, the customer can quickly check compliance with the transport conditions using the **display or LED indicators**.
Automatic Documentation and IT Security
- Automatic Report: When connected to a PC, the logger automatically generates a **PDF report**, which is ideal for long-term archiving according to the PDF/A standard.
- Integrated Information: The following are stored directly in the device’s memory: the **configuration program, instruction manual, and PDF report** with data.
- IT Security: The logger operates **without installing or downloading software**, which eliminates IT problems and the need for anti-virus software or a firewall.
- Easy Configuration: The setup process is maximally simplified thanks to the integrated configuration program.
Technical Specifications and Compliance
- Memory Capacity:
- Impact: **1,000** values.
- Humidity and Temperature: **64,000** values.
- Measurement Frequency: Freely set by the user from **1 min to 24 h**.
- Battery Life: **120 days**. The battery is standard and can be replaced by the user.
- Compliance: The testo 184 G1 complies with **GxP** regulations, **21 CFR Part 11, HACCP**, and **EN 12830** requirements.
- Operation: Intuitive control—start logging with the “Start” button, stop with the “Stop” button.
Technical Data (Order Number 0572 1846)
General Technical Data and Communication
| Weight: | 44 g |
| Dimensions: | 97 x 40 x 12 mm (LxWxH) |
| Housing: | ABS |
| Product colour: | white |
| Protection Class: | IP30 |
| Operating Temperature: | -20 … +70 °C |
| Storage Temperature: | -55 … +70 °C |
| Display Type: | segment LCD |
| Display Size: | single line |
| Display Backlight: | no |
| Battery Type: | CR2450 Lithium battery, 3 V, replaceable |
| Battery Life: | 120 days (at +25 °C and 15 min. measuring cycle) |
| Interface: | USB; NFC |
| Channels: | 5 internal |
| Operating Time: | Unlimited |
| Memory (temperature and humidity): | 64,000 readings |
| Memory (impact): | 1,000 readings |
| Standards: | CE 2014/30/EU; DIN EN 61326-1:2013; DIN EN 50581:2013; CFR 21 Part 11; HACCP International |
| Alarm Notification: | via LED illumination and display |
| System Requirements: | Adobe® Acrobat Reader |
—
Temperature Measurement (NTC sensor)
| Measuring Range: | -20 … +70 °C |
| Resolution: | 0.1 °C |
| Measuring Rate: | 1 min. … 24 h. |
| Accuracy (0 … +70 °C): | ±0.5 °C |
| Accuracy (-20 … +0 °C): | ±0.8 °C |
| Response Time t99: | t90 = 30 min. |
—
Capacitive Humidity Sensor
| Measuring Range: | 0 … 100 % RH |
| Resolution: | 0.1 % RH |
| Measuring Rate: | 1 min. … 24 h. |
| Accuracy (+25 °C, 20 … 80 % RH): | ±2 % RH |
| Accuracy (+25 °C, < 20 and > 80 % RH): | ±3 % RH |
| Hysteresis: | ±1 %rF |
| Drift: | ±1 %rF/year |
—
Impact Measurement (Acceleration)
| Measuring Range (g): | 0 … 27 g |
| Measuring Range (m/s²): | 0 … 265 m/s² |
| Resolution (g): | 0.1 g |
| Resolution (m/s²): | 1 m/s² |
| Measuring Rate: | 1 s. |
| Accuracy: | ±(0.1 g + 5 % of meas. val.) |
