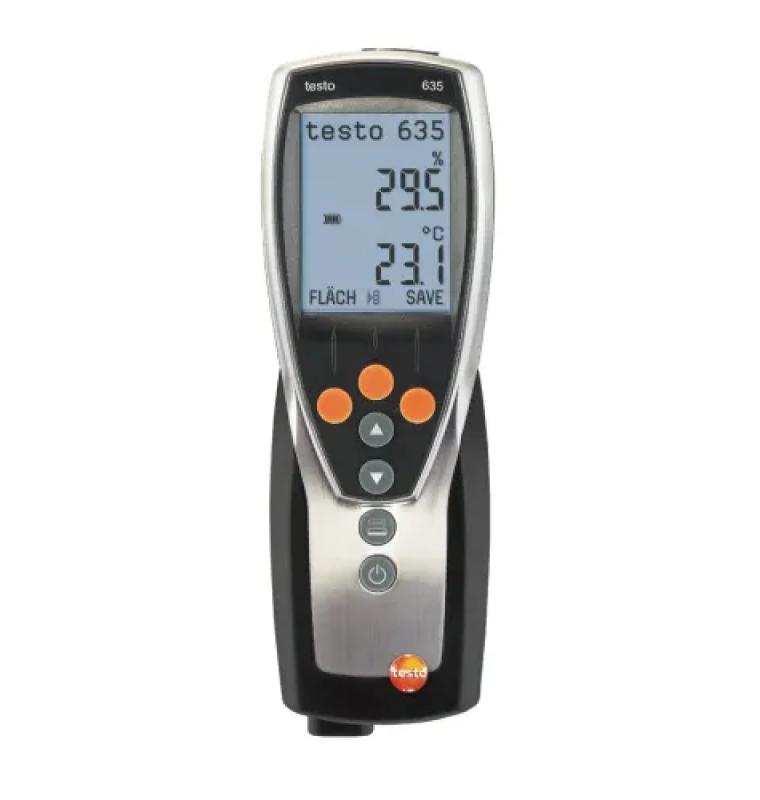

testo 635-1, humidity and temperature measuring instrument

Includes battery and calibration protocol

This instrument measures air humidity, equilibrium moisture of materials, and dew point under pressure in compressed air systems. The display can show data from three humidity or temperature probes; data transmission can be done wirelessly using the radio option 9* (please check if this option is available in your country). Measurement data can also be sent to a Testo printer via the infrared port. During cyclic printing, data can be printed at regular intervals, e.g., once per minute. The instrument instantly shows the dew point difference between air temperature and the surface temperature of walls when analyzing wall and ceiling moisture. Precise probes are used for measuring dew point under pressure in compressed air systems, down to -60 °C. The Testo humidity sensor is globally recognized for outstanding accuracy, long-term stability, temperature resistance, and durability.

  • Print measurement data on-site using a Testo printer
  • Cyclic data printing on the Testo printer, e.g., once per minute
  • Measurement of humidity, material equilibrium moisture, and dew point under pressure
  • Radio probes for measuring temperature and humidity
  • Protection class IP 54
Category:
Contact by email

Description

Order Number: 0560 6351

Registered in the Register of the State System for Ensuring the Uniformity of Measurements of the Republic of Kazakhstan
on 28.01.2021 under № KZ.02.01.00878-2020
Valid until 28.01.2026


Technical Data
Storage Temperature-30 … +70 °C
Operating Temperature-20 … +50 °C
Battery TypeAlkaline manganese, AA
Battery Life200 hours
Weight428 g
Dimensions220 x 74 x 46 mm
Housing MaterialABS/TPE/Metal
Probe Type: NTC
Measurement Range-40 … +150 °C
Accuracy±0.2 °C (-25 … +74.9 °C)
±0.4 °C (-40 … -25.1 °C)
±0.4 °C (+75 … +99.9 °C)
±0.5% of measured value (other ranges)
Resolution0.1 °C
Probe Type: Type K
Measurement Range-200 … +1370 °C
Accuracy±0.3 °C (-60 … +60 °C)
±0.5% of measured value (other ranges)
Resolution0.1 °C
Probe Type: Absolute Pressure Sensor
Measurement Range0 … 2000 hPa
Resolution0.1 hPa
Probe Type: Capacitive Humidity Sensor
Measurement Range0 … +100 % RH
Resolution0.1 % RH
